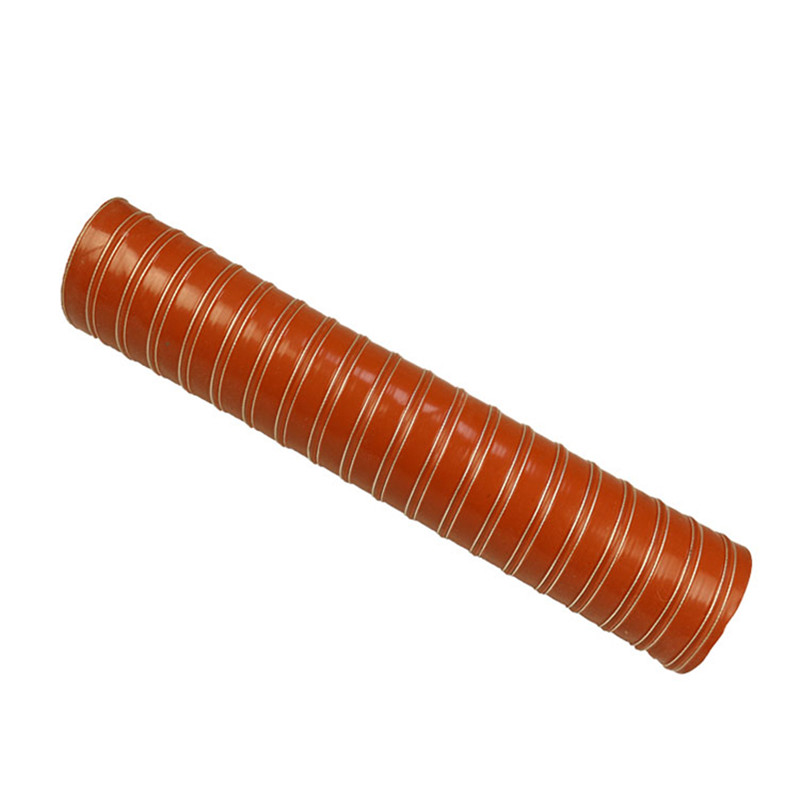

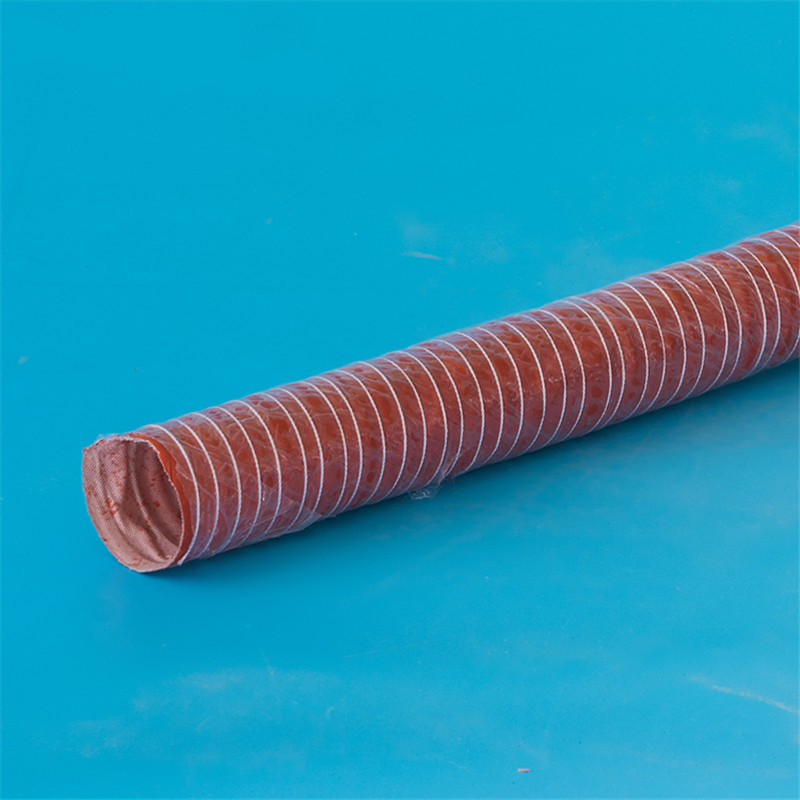

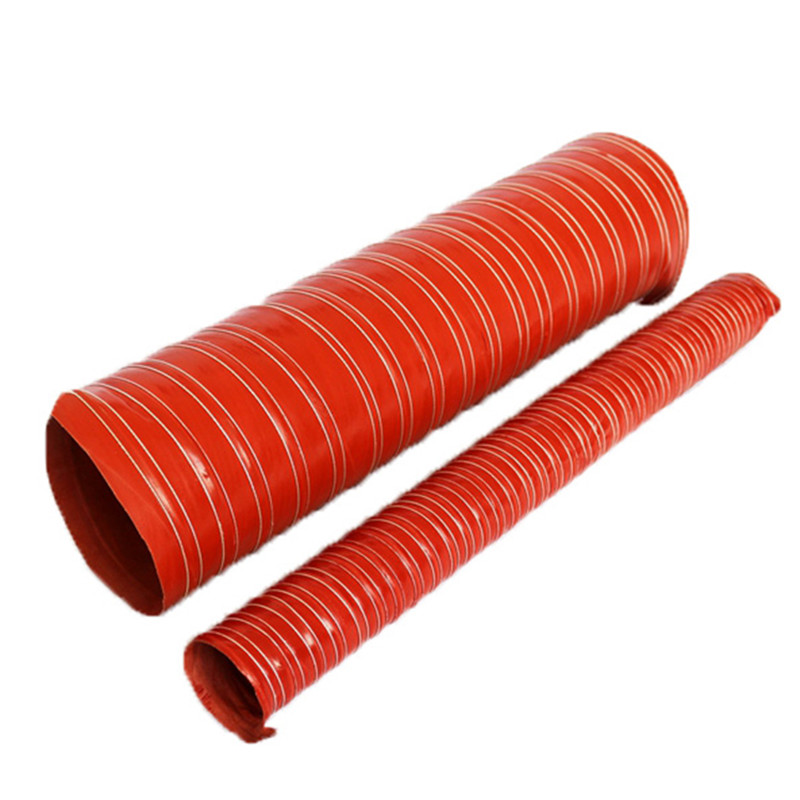

Silicone Duct
硅膠管
|
Product Code |
XY-802 |
|
Construction (From outside to inside) |
Glass Fiber Cord +Silicon Coated+ Glass Fabric+ Steel Wire+ Glass Fabric |
|
Color |
Red/black |
|
InnerDiameter |
40mm-300mm (1.5"-12") |
|
Thickness |
0.6mm |
|
Length |
4m(Max) |
|
Helix Spacing |
15mm,16mm,18mm,19mm(customized) |
|
Bending Property |
Good |
|
Helix Wire Diameter |
1.2mm,1.5mm |
|
Fiber Braiding Wire Thickness |
1mm |
|
Fire Resistance |
Non-Flammable |
|
Compression Ratio |
Cannot Been Compressed |
|
Temperature Range |
-70℃/+280℃(short time to +310℃) |
|
Operating Pressure |
3000Pa |
|
Maximum Air Velocity |
30m/s |
|
產(chǎn)品編碼 |
XY-802 |
|
材質(zhì) |
玻璃纖維繩+硅膠涂層玻纖布+ 鋼絲 |
|
顏色 |
紅色 |
|
內(nèi)徑范圍 |
40mm-300mm (1.5"-12") |
|
管壁厚度 |
0.6mm |
|
標準長度 |
4m(Max) |
|
鋼絲間距 |
15mm,16mm,18mm,19mm(按要求定制) |
|
彎曲性能 |
Good |
|
鋼絲直徑 |
1.2mm,1.5mm |
|
玻璃纖維繩直徑 |
1mm |
|
阻燃性能 |
不可燃 |
|
壓縮比例 |
不可壓縮 |
|
溫度范圍 |
-70℃/+280℃(短期可達 +310℃) |
|
最大壓力 |
3000Pa |
|
最大風速 |
30m/s |
