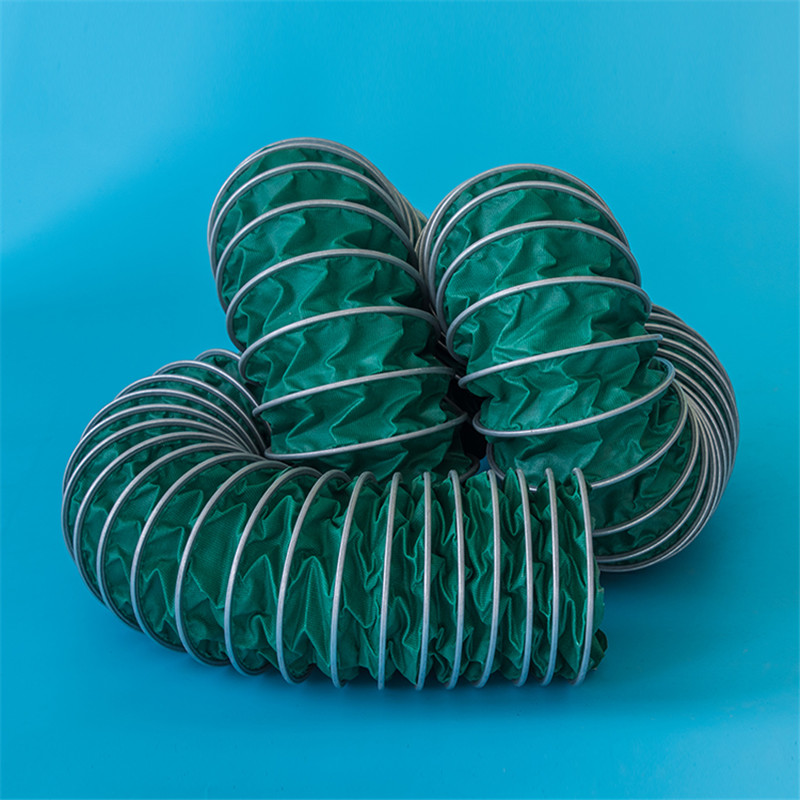

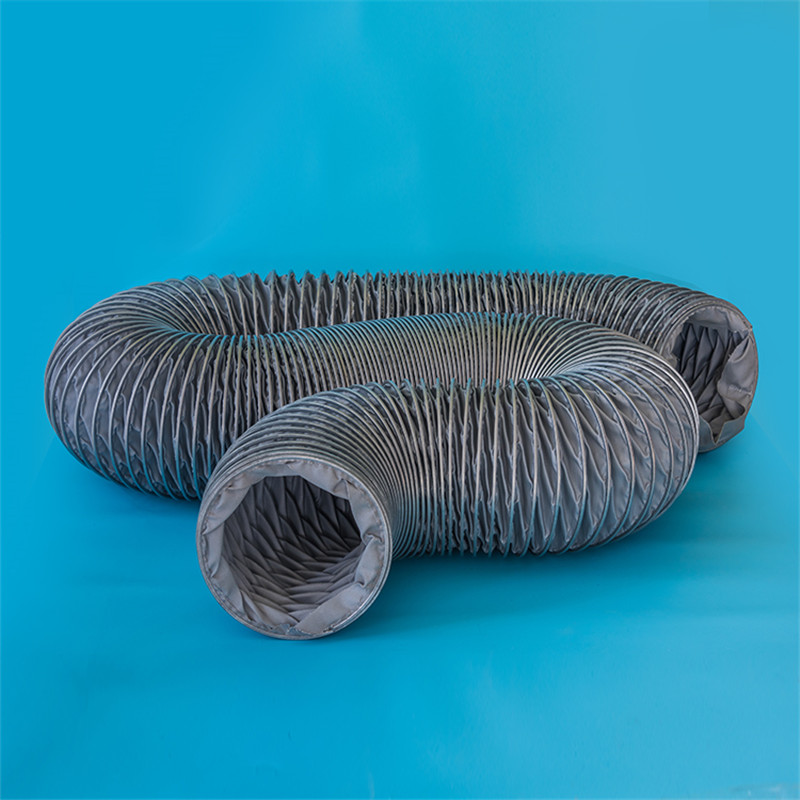

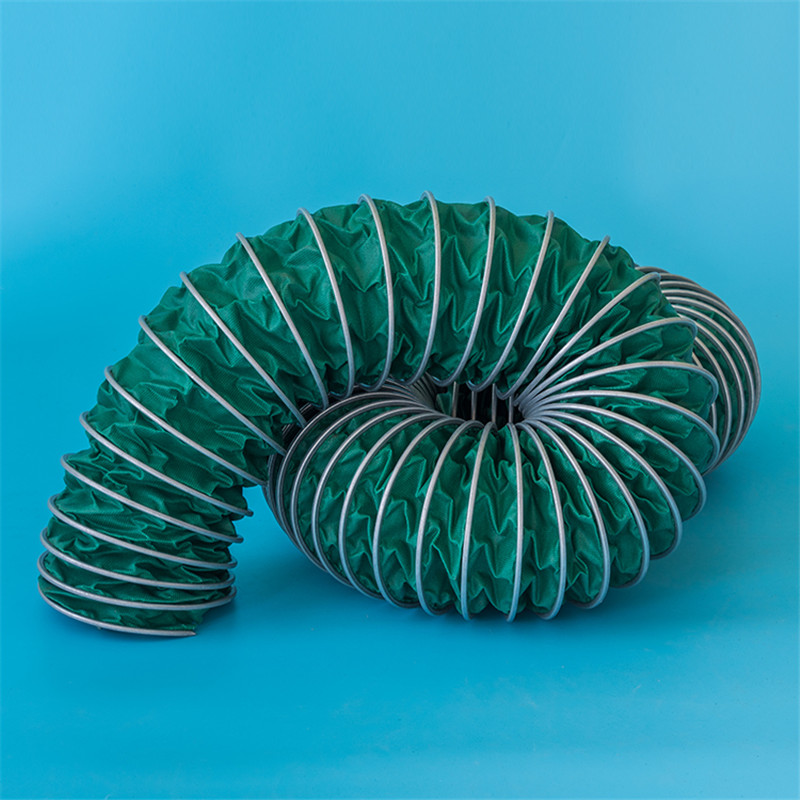

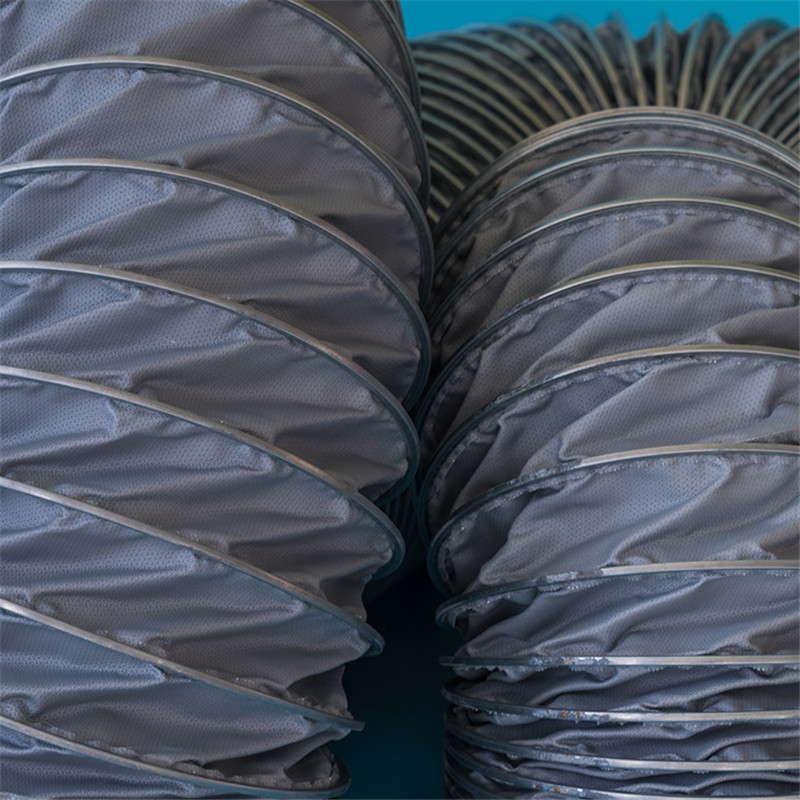

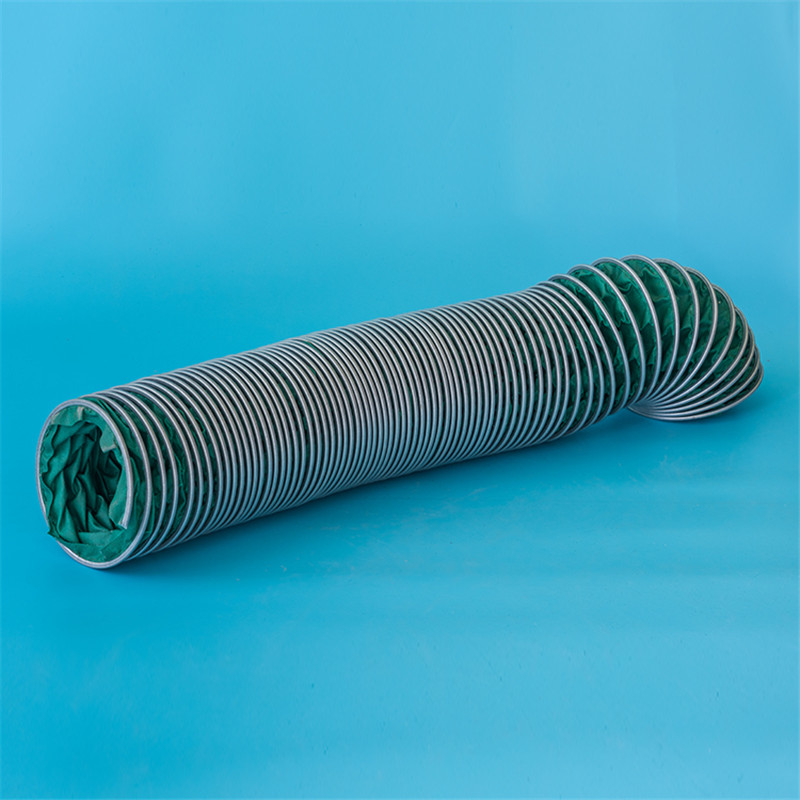

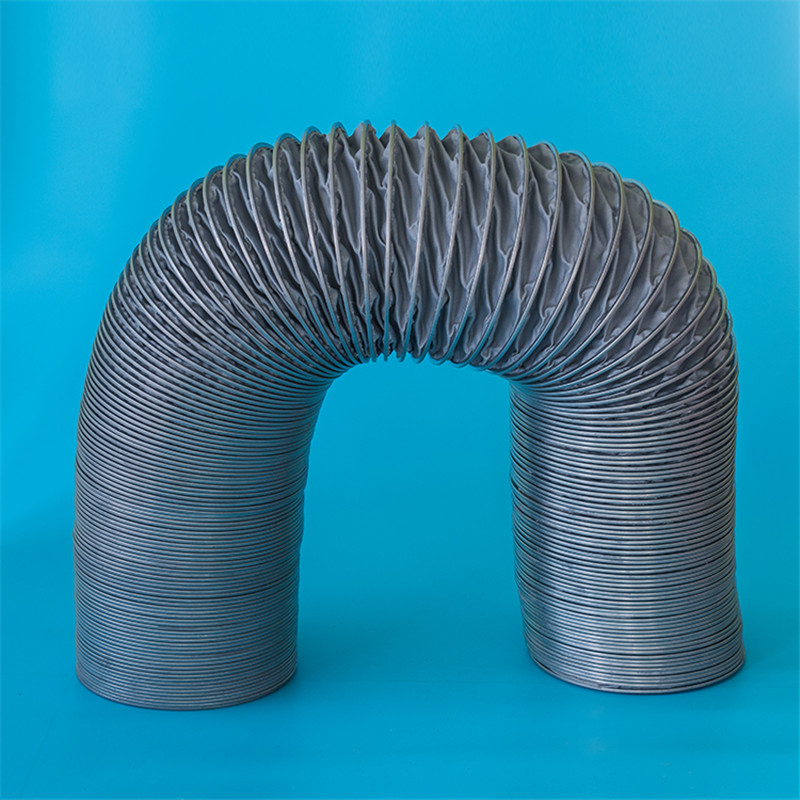

High-Temperature Ventilation Duct
高溫管
|
Product Code |
XY-803 |
|
Construction (From outside to inside) |
Reinforced Glass Fabric (+ Aluminum Foil) |
|
Color |
Metallic Grey/Green |
|
InnerDiameter |
50mm-500mm (2"-20") |
|
Thickness |
0.35mm |
|
Length |
10m(Max) |
|
Fire Resistance |
Non-Flammable |
|
Compression Ratio |
1 : 10 |
|
Temperature Range |
-70℃/+250℃/+400℃/+800℃/+1000℃ |
|
Operating Pressure |
3000Pa |
|
Maximum Air Velocity |
30m/s |
|
|
|
|
產品編碼 |
XY-803 |
|
材質 |
加強型玻纖布 |
|
顏色 |
灰色 |
|
內徑范圍 |
50mm-500mm (2"-20") |
|
管壁厚度 |
0.35mm |
|
標準長度 |
10m(Max) |
|
阻燃性能 |
不可燃 |
|
壓縮比例 |
1 : 10 |
|
溫度范圍 |
-70℃/+250℃/+400℃/+800℃/+1000℃ |
|
最大壓力 |
3000Pa |
|
最大風速 |
30m/s |
